项目介绍

整个 SDK 都是围绕 sdk.app.user、 sdk.app.menus 进行设计的，旨在简化微前端应用的开发
主应用 sdk.use(plugin, opts).mount('sdk') → 微应用 sdk.extend('sdk') → 共享同一套状态与能力
架构图
架构图地址
可参考项目

具体使用

主应用

创建 Vite 项目
1
npm create vite@latest
安装 @zxiaosi/sdk、react-router-dom@6、qiankun 依赖
1
npm install @zxiaosi/sdk react-router-dom@6 qiankun

在 src 文件夹下创建 sdk.config.ts 文件，并进行 SDK 的配置

import {
  sdk,
  SDKApiPlugin,
  SDKAppPlugin,
  SDKComponentsPlugin,
  SDKConfigPlugin,
  SDKI18nPlugin,
  SDKRouterPlugin,
  SDKStoragePlugin,
  SDKStorePlugin,
} from "@zxiaosi/sdk";

import { loadMicroApp } from "qiankun";

sdk
  .use(SDKApiPlugin)
  .use(SDKAppPlugin, { loadMicroApp })
  .use(SDKComponentsPlugin)
  .use(SDKConfigPlugin)
  .use(SDKI18nPlugin)
  .use(SDKRouterPlugin)
  .use(SDKStoragePlugin)
  .use(SDKStorePlugin)
  .mount("sdk");

在 src/main.ts 中引入 sdk.config.ts 文件

import { createRoot } from "react-dom/client";
import App from "./App.tsx";
import "./sdk.config.ts";

createRoot(document.getElementById("root")!).render(<App />);

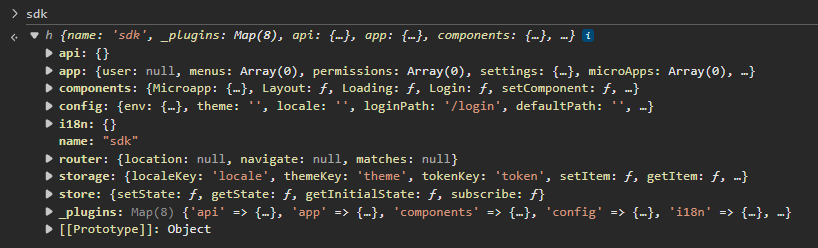

运行项目 npm run dev，并在控制台输入 sdk 查看 SDK 是否初始化成功

在 src/App.tsx 中使用 sdk

import { sdk } from "@zxiaosi/sdk";
import { useEffect, useState } from "react";
import {
  Navigate,
  RouterProvider,
  createBrowserRouter,
  useLocation,
  useMatches,
  useNavigate,
} from "react-router-dom";

const loader = (loading: boolean) => sdk.store.getState().setMicroAppLoading(loading);

const microApps = [
  {
    name: "subapp1",
    container: "#sub-app",
    entry: "http://localhost:5174",
    loader: loader,
    props: { sdk },
  },
  {
    name: "subapp2",
    container: "#sub-app",
    entry: "http://localhost:5175",
    loader: loader,
    props: { sdk },
  },
];

/** 记录路由信息 */
const WithRouter = ({ children }: any) => {
  sdk.router.location = useLocation();
  sdk.router.matches = useMatches();
  sdk.router.navigate = useNavigate();
  return children;
};

function App() {
  const loginPath = sdk.config.loginPath;
  const renderComponent = sdk.components.renderComponent;

  const defaultRoutes = [
    { path: loginPath, element: renderComponent("Login") },
    { path: "*", element: <div>404</div> },
  ].map((_) => ({ ..._, element: <WithRouter>{_.element}</WithRouter> }));

  const [routes, setRoutes] = useState(defaultRoutes);

  const initData = () => {
    sdk.app.user = { name: "zxiaosi" };
    sdk.app.microApps = microApps;

    sdk.app.menus = [
      { key: "Home", name: "Home", path: "/home", element: <div>Home</div> },
      {
        key: "Subapp1",
        name: "Subapp1",
        path: "/subapp1",
        element: renderComponent("Microapp", { name: "subapp1", rootId: "sub-app" }),
      },
      {
        key: "Subapp2",
        name: "Subapp2",
        path: "/subapp2",
        element: renderComponent("Microapp", { name: "subapp2", rootId: "sub-app" }),
      },
    ];

    const allRoutes = [
      ...defaultRoutes,
      { path: "/", element: <Navigate to={"/home"} replace /> },
      {
        path: "/",
        element: <WithRouter>{renderComponent("Layout")}</WithRouter>,
        children: sdk.app.menus,
      },
    ];

    setRoutes(allRoutes);
  };

  useEffect(() => {
    sdk.app.initData = initData;

    const pathName = window.location.pathname;

    if ([loginPath].includes(pathName)) return;
    initData();
  }, []);

  return (
    <RouterProvider router={createBrowserRouter(routes)} future={{ v7_startTransition: false }} />
  );
}

export default App;

微应用

创建 Vite 项目
1
npm create vite@latest

安装 @zxiaosi/sdk、vite-plugin-qiankun-lite 依赖

1 2	npm install @zxiaosi/sdk npm install vite-plugin-qiankun-lite -d

在 vite.config.ts 中配置 vite-plugin-qiankun-lite 插件

import { defineConfig } from "vite";
import react from "@vitejs/plugin-react";
import qiankun from "vite-plugin-qiankun-lite";

export default defineConfig({
  plugins: [react(), qiankun({ name: "subapp", sandbox: !!process.env.VITE_SANDBOX })],
  server: {
    port: 5174,
  },
});

在 src/main.ts 中进行 SDK 的继承

import { sdk } from "@zxiaosi/sdk";
import { createRoot, type Root } from "react-dom/client";
import App from "./App.tsx";
import { name } from "../package.json";

let root: Root;
const render = (props: any = {}) => {
  const container = props?.container
    ? props.container.querySelector("#root")
    : document.getElementById("root");

  root = createRoot(container);

  root.render(<App />);
};

if (!window.__POWERED_BY_QIANKUN__) {
  render();
}

export async function bootstrap() {
  console.log(`${name} bootstrap`);
}

export async function mount(props: any) {
  console.log(`${name} mount`, props);
  sdk.extend(props?.sdk?.name); // 继承 sdk 功能
  render(props);
}

export async function unmount(props: any) {
  console.log(`${name} unmount`, props);
  root.unmount();
}

export async function update(props: any) {
  console.log(`${name} update`, props);
}

自定义插件

插件内容 name 和 install

import type { SDKPlugin } from "@zxiaosi/sdk";

/** 插件名称 */
const pluginName = "test";

const SDKTestPlugin: SDKPlugin<"test"> = {
  name: pluginName,
  install(sdk, options = {}) {
    sdk[pluginName] = options;
  },
};

export { SDKTestPlugin };

插件类型

// vite-env.d.ts

import "@zxiaosi/sdk";

declare module "@zxiaosi/sdk" {
  interface SDKPlugins {
    /** 自定义插件 **/
    test: {};
  }
}

使用插件
1
sdk.use(SDKTestPlugin).mount("sdk");

注意事项

`SDK` 未初始化

SDK 不能直接进行使用，否则会报 SDK 未初始化 错误

可以在 组件中 或者 方法中 中使用

const handle = () => { sdk.xxx };

const App = () => {
  sdk.xxx
  return <></>
}

`React` 多实例

微应用使用 sdk.components.renderComponent('xxx') 时，会报 React 多实例 的错误，需要使用 vite-plugin-externals 插件将 React 等依赖排除在打包之外。更多详情

在 主应用 的 index.html 中使用 cdn 的方式去加载 react 和 react-dom 包

<!doctype html>
<html lang="en">
  <head>
    <title>%VITE_APP_TITLE%</title>
    <script src="https://unpkg.com/react@18.3.1/umd/react.development.js"></script>
    <script src="https://unpkg.com/react-dom@18.3.1/umd/react-dom.development.js"></script>
  </head>
  <body>
    <div id="root"></div>
    <script type="module" src="/src/main.tsx"></script>
  </body>
</html>

在 主/微应用 中使用 vite-plugin-externals 插件去排除 react 和 react-dom 包

import { viteExternalsPlugin } from "vite-plugin-externals";

export default defineConfig({
  plugins: [
    viteExternalsPlugin({
      react: "React",

      // 开发环境不排除 react-dom 依赖, 防止热更新失效
      // 或者 浏览器安装 React Developer Tools 插件
      "react-dom": "ReactDOM",
      "react-dom/client": "ReactDOM",
    }),
  ],
});
