React Flow

React Flow

• React Flow 一个可定制的 React 组件，用于构建基于节点的编辑器和交互式图表

• 官网提供了大量示例，以及在线演示。建议看完每个示例，很有用！！！

• 其他参考：Vue Flow

代码地址

在线演示

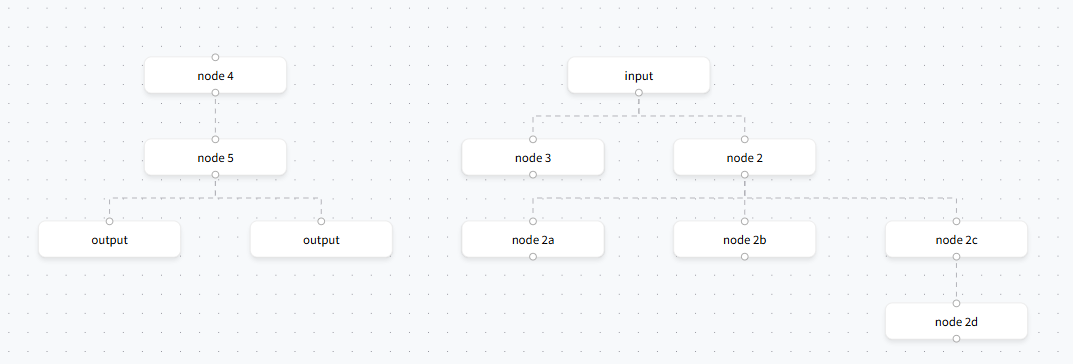

自动布局示例

• 参考官网示例：Dagre Tree

• 使用 Dagre 时注意事项

  • Dagre 布局算法需要指定节点的宽和高，否则会报错

  • @dagrejs/dagre v1.1.4 在老版浏览器 (eg: chromev89.0.4389.90) 会报 Object.hasOwn is not a function 错误，降级为 @dagrejs/dagre v1.1.3 即可解决

• 官网示例下面有公开的代码，此处不再贴出代码

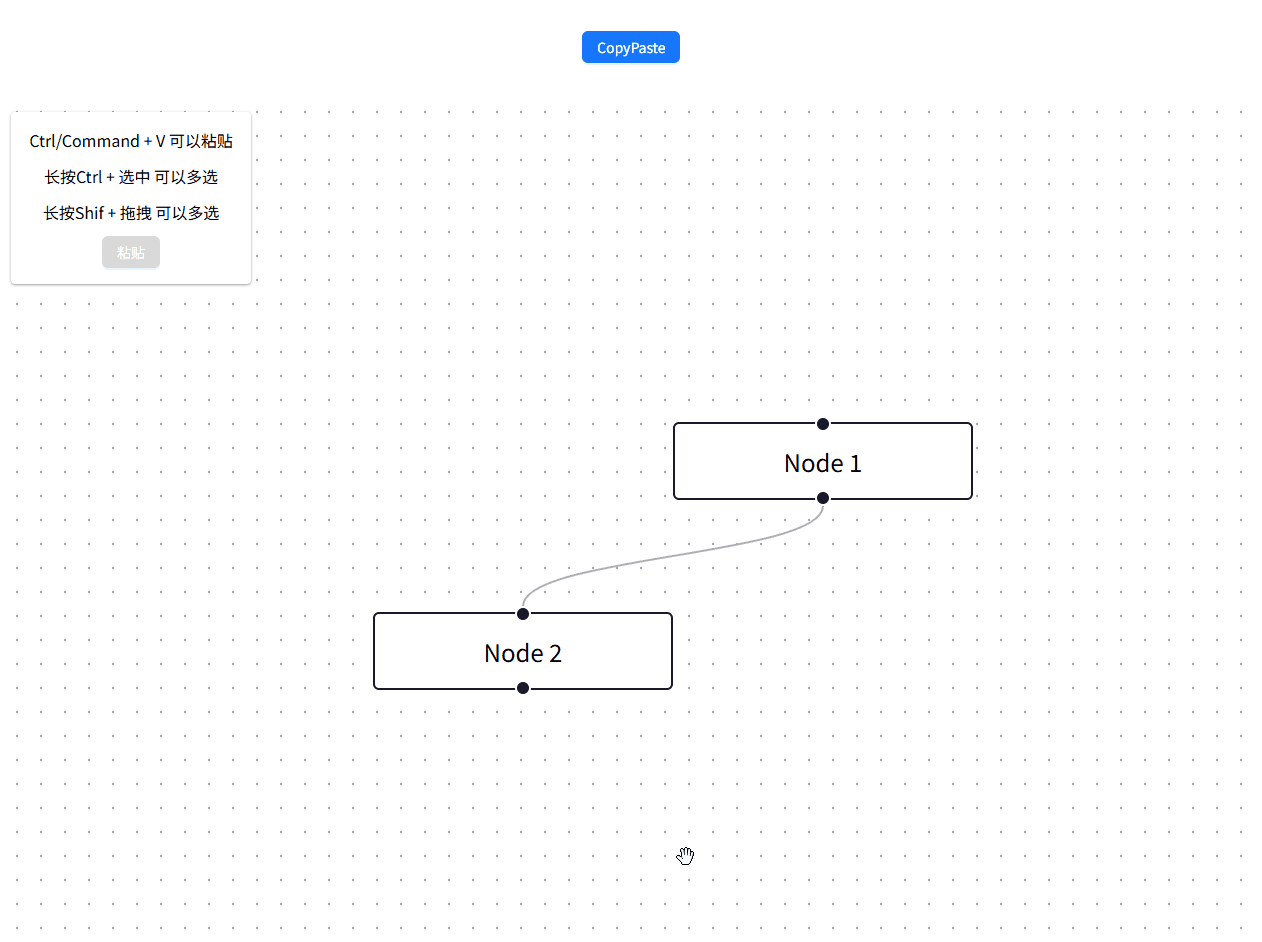

复制粘贴示例

• 参考官网示例：Copy and Paste

• 可以仿照例子，当节点被选中时，再出现粘贴功能。核心代码如下：

  import {
    Background,
    BackgroundVariant,
    Edge,
    Node,
    OnSelectionChangeParams,
    Panel,
    ReactFlow,
    ReactFlowProvider,
    useReactFlow,
  } from '@xyflow/react';
  import { cloneDeep } from 'lodash';
  import { useCallback, useState } from 'react';
  import { v4 as uuidv4 } from 'uuid';

  import '@xyflow/react/dist/style.css'; // 引入样式
  import './index.css';

  /** 粘贴时偏移量 */
  const OFFSET = 50;

  /** 默认节点 */
  const defaultNodes = [
    {
      id: '1',
      data: { label: 'Node 1' },
      position: { x: 250, y: 5 },
    },
    {
      id: '2',
      data: { label: 'Node 2' },
      position: { x: 100, y: 100 },
    },
  ];

  /** 默认连接线 */
  const defaultEdges = [
    {
      id: '1-2',
      source: '1',
      target: '2',
    },
  ];

  /** 自定义复制粘贴组件 */
  const CustomCopyPaste = () => {
    // 监听 'Control+v', 'Meta+v' 不能连续粘贴
    // const keyPress = useKeyPress(['v']); // 可以监听按键变化, 不过比较难判断

    const { setNodes, setEdges, getNodes } = useReactFlow();

    const [selected, setSelected] = useState<OnSelectionChangeParams>();

    /** 节点/连接线选择事件 */
    const handleSelectionChange = useCallback(
      (nodeEdgeObj: OnSelectionChangeParams) => {
        setSelected?.(nodeEdgeObj);
      },
      []
    );

    /** 粘贴事件 */
    const handlePaste = useCallback(() => {
      if (selected?.nodes.length === 0) return;

      const selectedNodes = selected?.nodes || [];
      const selectedEdges = selected?.edges || [];

      // 获取当前选中的节点(防止复制节点之后, 节点移动, 坐标未更新)
      const selectedNodeIds = new Set(selectedNodes?.map((_) => _.id) || []);
      const allNodes = getNodes() || [];
      const newSelectedNodes = allNodes.filter((_) =>
        selectedNodeIds.has(_.id)
      );

      // 创建旧节点ID到新节点ID的映射
      const nodeIdMap = selectedNodes?.reduce((acc, node) => {
        acc[node.id] = uuidv4();
        return acc;
      }, {} as Record<string, string>);

      // 生成新节点
      const newNodes = cloneDeep(newSelectedNodes)?.map((node) => ({
        ...node,
        id: nodeIdMap?.[node.id],
        position: {
          x: node.position.x + OFFSET,
          y: node.position.y + OFFSET,
        },
        selected: true,
      })) as Node[];

      // 生成新边
      const newEdges = cloneDeep(selectedEdges)?.map((edge) => {
        const { source, target } = edge;
        const newSource = nodeIdMap?.[source];
        const newTarget = nodeIdMap?.[target];
        const id = [newSource, newTarget].filter(Boolean).join('-');

        return {
          ...edge,
          id,
          source: newSource || source,
          target: newTarget || target,
          selected: true,
        };
      }) as Edge[];

      // 更新状态（单次批量更新）
      setNodes((prevNodes) => [
        ...prevNodes.map((node) =>
          newSelectedNodes?.some((n) => n.id === node.id)
            ? { ...node, selected: false }
            : node
        ),
        ...newNodes,
      ]);

      setEdges((prevEdges) => [
        ...prevEdges.map((edge) =>
          selectedEdges?.some((e) => e.id === edge.id)
            ? { ...edge, selected: false }
            : edge
        ),
        ...newEdges,
      ]);
    }, [selected?.nodes, selected?.edges, getNodes, setNodes, setEdges]);

    /** 按键抬起事件(选中节点才会触发) */
    const handleKeyUp = useCallback(
      (event: React.KeyboardEvent) => {
        if (event.ctrlKey && event.key === 'v') {
          handlePaste();
        }
      },
      [handlePaste]
    );

    return (
      <ReactFlow
        fitView
        defaultNodes={defaultNodes}
        defaultEdges={defaultEdges}
        onSelectionChange={handleSelectionChange}
        onKeyUp={handleKeyUp}
        // selectionKeyCode={'Shift'} // 选中一片
        // multiSelectionKeyCode={['Control', 'Meta']} // 多选
        // deleteKeyCode={'Backspace'} // 删除选中节点
        proOptions={{ hideAttribution: true }}>
        {/* 背景 */}
        <Background variant={BackgroundVariant.Dots} gap={12} size={1} />

        {/* 面板 */}
        <Panel position="top-left">
          <div className="custom-copy-paste">
            <div>Ctrl/Command + V 可以粘贴</div>
            <div>长按Ctrl + 选中 可以多选</div>
            <div>长按Shif + 拖拽 可以多选</div>
            <div
              className={`btn ${
                selected?.nodes.length === 0 ? 'btn-disabled' : ''
              }`}
              onClick={handlePaste}>
              粘贴
            </div>
          </div>
        </Panel>
      </ReactFlow>
    );
  };

  /** Provider */
  const CustomCopyPasteProvider = () => {
    return (
      <ReactFlowProvider>
        <CustomCopyPaste />
      </ReactFlowProvider>
    );
  };

  export default CustomCopyPasteProvider;

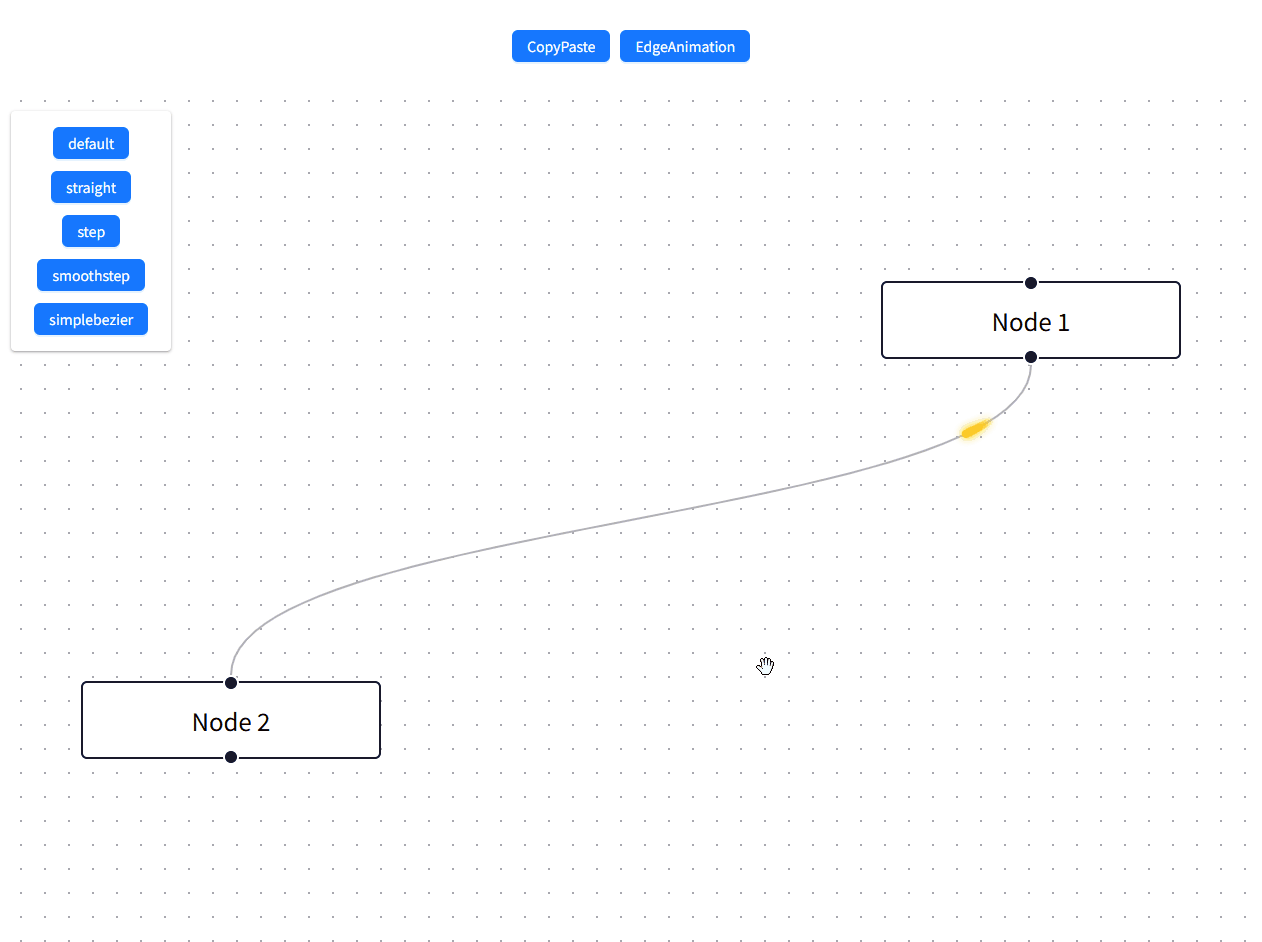

自定义连接线里流星拖尾

• 参考官网示例：Animating Edges

• 实现思路：使用多个 <circle> 元素，通过延迟控制实现流星动画。这样做的好处是不用处理元素的方向，例如 <rect> 在拐弯时方向不会改变问题

• 官方提供了四种获取路径的方法

  • getBezierPath：通过贝塞尔曲线计算路径

  • getSimpleBezierPath：通过简单贝塞尔曲线计算路径

  • getSmoothStepPath：通过平滑曲线计算路径，如果 borderRadius 参数为 0，则为 Step 效果

  • getStraightPath： 通过直线计算路径

• 核心代码如下：

  • 配置 customEdgeAnimation.tsx 文件如下

    import {
      Background,
      BackgroundVariant,
      BaseEdge,
      EdgeProps,
      getBezierPath,
      getSimpleBezierPath,
      getSmoothStepPath,
      getStraightPath,
      Panel,
      ReactFlow,
      ReactFlowProvider,
    } from '@xyflow/react';
    import { memo } from 'react';
    import { useShallow } from 'zustand/shallow';
    import useEdgeType, { EdgeType } from '../../hooks/useEdgeType';

    import '@xyflow/react/dist/style.css'; // 引入样式
    import './index.css';

    /** 是否反转动画 */
    const reverse = false;

    /** 动画小圆点个数 */
    const count = 10;

    /** 连接线类型 */
    const edgeTypeOptions = [
      'default',
      'straight',
      'step',
      'smoothstep',
      'simplebezier',
    ] satisfies EdgeType[];

    /** 默认节点 */
    const defaultNodes = [
      {
        id: '1',
        data: { label: 'Node 1' },
        position: { x: 400, y: 0 },
      },
      {
        id: '2',
        data: { label: 'Node 2' },
        position: { x: 0, y: 200 },
      },
    ];

    /** 默认连接线 */
    const defaultEdges = [
      {
        id: '1-2',
        source: '1',
        target: '2',
        type: 'customEdge',
      },
    ];

    /** 自定义连接线 */
    const CustomEdge = memo((props: EdgeProps) => {
      const list = Array.from({ length: count });

      const {
        id,
        sourceX,
        sourceY,
        targetX,
        targetY,
        sourcePosition,
        targetPosition,
      } = props;

      let path = ''; // 路线
      const params = {
        sourceX,
        sourceY,
        sourcePosition,
        targetX,
        targetY,
        targetPosition,
      };

      const { edgeType } = useEdgeType(
        useShallow((state) => ({
          edgeType: state.edgeType,
        }))
      );

      console.log('edgeType', edgeType);

      switch (edgeType) {
        case 'default': {
          const bezierPath = getBezierPath(params);
          path = bezierPath[0];
          break;
        }
        case 'simplebezier': {
          const bezierPath = getSimpleBezierPath(params);
          path = bezierPath[0];
          break;
        }
        case 'smoothstep': {
          const smoothStepPath = getSmoothStepPath({
            ...params,
            borderRadius: 5,
          });
          path = smoothStepPath[0];
          break;
        }
        case 'step': {
          const smoothStepPath = getSmoothStepPath({
            ...params,
            borderRadius: 0,
          });
          path = smoothStepPath[0];
          break;
        }
        case 'straight': {
          const smoothStepPath = getStraightPath(params);
          path = smoothStepPath[0];
          break;
        }
      }

      return (
        <>
          <BaseEdge id={id} path={path} />

          {list?.map((point, index) => (
            <circle
              key={index}
              r={'2'}
              fill={`rgba(255, 195, 0, ${0.1 * (count - index)})`}
              style={{
                filter: 'drop-shadow(0px 0px 2px rgb(255, 195, 0))',
              }}>
              <animateMotion
                dur={'6s'}
                repeatCount={'indefinite'}
                path={path}
                begin={`${0.02 * (index + 1)}s`}
                keyPoints={reverse ? '1;0' : '0;1'} //
                keyTimes={'0;1'}
              />
            </circle>
          ))}
        </>
      );
    });

    /** 注入连接线 */
    const edgeTypes = { customEdge: CustomEdge };

    /** 自定义连接线动画组件 */
    const CustomEdgeAnimation = () => {
      const { onChangeEdgeType } = useEdgeType(
        useShallow((state) => ({
          onChangeEdgeType: state.onChangeEdgeType,
        }))
      );

      return (
        <ReactFlow
          fitView
          defaultNodes={defaultNodes}
          defaultEdges={defaultEdges}
          edgeTypes={edgeTypes}
          proOptions={{ hideAttribution: true }}>
          {/* 背景 */}
          <Background variant={BackgroundVariant.Dots} gap={12} size={1} />

          {/* 面板 */}
          <Panel position="top-left">
            <div className="custom-edge-animation">
              {edgeTypeOptions?.map((item) => (
                <div
                  key={item}
                  className={`btn`}
                  onClick={() => onChangeEdgeType?.(item)}>
                  {item}
                </div>
              ))}
            </div>
          </Panel>
        </ReactFlow>
      );
    };

    /** Provider */
    const CustomEdgeAnimationProvider = () => {
      return (
        <ReactFlowProvider>
          <CustomEdgeAnimation />
        </ReactFlowProvider>
      );
    };

    export default CustomEdgeAnimationProvider;

  • 配置 useEdgeType.ts 文件如下

    import { create } from 'zustand';

    export type EdgeType =
      | 'default'
      | 'straight'
      | 'step'
      | 'smoothstep'
      | 'simplebezier';

    interface Props {
      /** 连接线类型 */
      edgeType?: EdgeType;
      /** 切换连接线类型事件 */
      onChangeEdgeType: (edgeType: EdgeType) => void;
    }

    /** 连接线类型 */
    const useEdgeType = create<Props>((set) => ({
      edgeType: 'default',
      onChangeEdgeType: (edgeType) => set(() => ({ edgeType })),
    }));

    export default useEdgeType;



自定义编辑连接线

• 参考官网示例：Editable Edge

• 实现思路：这是一个自定义连接线，当选中时，显示两个节点之间的中心顶点。当拖动时，在当前顶点与其相近的两个顶点中心位置各自添加一个顶点。

• 目前仅实现在已知拐点添加了拖拽事件，核心代码如下：

  import {
    Background,
    BackgroundVariant,
    BaseEdge,
    Edge,
    EdgeProps,
    getSmoothStepPath,
    ReactFlow,
    ReactFlowProvider,
    useReactFlow,
  } from '@xyflow/react';
  import { isEmpty } from 'lodash';
  import { memo, useEffect, useRef } from 'react';

  import '@xyflow/react/dist/style.css'; // 引入样式
  import './index.css';

  /** 顶点坐标 */
  type Vertices = { x: number; y: number };

  /** 默认节点 */
  const defaultNodes = [
    {
      id: '1',
      data: { label: 'Node 1' },
      position: { x: 400, y: 0 },
    },
    {
      id: '2',
      data: { label: 'Node 2' },
      position: { x: 0, y: 200 },
    },
  ];

  /** 默认连接线 */
  const defaultEdges = [
    {
      id: '1-2',
      source: '1',
      target: '2',
      type: 'customEdge',
    },
  ];

  /** 解析路径, 获取拐点 */
  const getVerticesByPathUtil = (path: string) => {
    const regex = /L\s+(\d+),(\d+)/g; // 匹配 L x,y 的格式
    const vertices: Vertices[] = [];
    let match;

    while ((match = regex.exec(path)) !== null) {
      const x = parseFloat(match[1]);
      const y = parseFloat(match[2]);
      vertices.push({ x, y });
    }

    return vertices;
  };

  /** 自定义连接线 */
  const CustomEdge = memo(
    (props: EdgeProps<Edge<{ vertices: Vertices[] }>>) => {
      const {
        id,
        sourceX,
        sourceY,
        targetX,
        targetY,
        sourcePosition,
        targetPosition,
        data,
        selected,
      } = props;

      const { updateEdgeData, screenToFlowPosition } = useReactFlow();

      const edgePathRef = useRef(''); // 连接线路径
      const mouseDownIdRef = useRef(-1); // 鼠标按下的拐点索引

      // 如果有拐点，则使用拐点坐标
      if (data?.vertices) {
        // 组合所有路径点（起点 + 拐点 + 终点）
        const points = [
          { x: sourceX, y: sourceY },
          ...(data?.vertices || []), // 拐点
          { x: targetX, y: targetY },
        ];

        // 生成直角路径指令
        edgePathRef.current = points.reduce((path, point, i) => {
          return i === 0
            ? `M ${point.x},${point.y}`
            : `${path} L ${point.x},${point.y}`;
        }, '');
      }

      // 如果没有拐点，则使用默认路径
      useEffect(() => {
        if (data?.vertices) return;

        // 获取路径
        const [path] = getSmoothStepPath({
          sourceX,
          sourceY,
          targetX,
          targetY,
          sourcePosition,
          targetPosition,
          borderRadius: 0, // 圆角还是直角
        });

        edgePathRef.current = path; // 更新路径

        // 解析路径，获取拐点坐标
        const vertices = getVerticesByPathUtil(edgePathRef.current) || [];

        // 更新拐点坐标
        updateEdgeData(id, { vertices: vertices });
      }, [updateEdgeData]);

      /** 鼠标移动事件 */
      const handleMouseMove = (event: MouseEvent) => {
        if (mouseDownIdRef.current < 0) return;
        event.preventDefault();
        const dragX = event.clientX;
        const dragY = event.clientY;

        const newVertices = [...(data?.vertices || [])];
        newVertices[mouseDownIdRef.current] = screenToFlowPosition(
          { x: dragX, y: dragY },
          { snapToGrid: false }
        );
        // 更新拐点坐标
        updateEdgeData(id, { vertices: newVertices });
      };

      /** 鼠标抬起事件 */
      const handleMouseUp = () => {
        mouseDownIdRef.current = -1;
        document.removeEventListener('mousemove', handleMouseMove);
        document.removeEventListener('mouseup', handleMouseUp);
      };

      /** 鼠标按下事件 */
      const handleMouseDown = (e: React.MouseEvent, index: number) => {
        mouseDownIdRef.current = index;
        document.addEventListener('mousemove', handleMouseMove);
        document.addEventListener('mouseup', handleMouseUp);
        e.preventDefault();
      };

      useEffect(() => {
        return () => {
          document.removeEventListener('mousemove', handleMouseMove);
          document.removeEventListener('mouseup', handleMouseUp);
        };
      }, []);

      return (
        <>
          <BaseEdge id={id} path={edgePathRef.current} />

          {selected &&
            !isEmpty(data?.vertices) &&
            data?.vertices?.map((vertex, index) => (
              <circle
                key={index}
                tabIndex={0}
                cx={vertex.x}
                cy={vertex.y}
                r="4px"
                fill="#ff0066"
                strokeWidth={1}
                stroke={mouseDownIdRef.current === index ? 'black' : 'white'}
                style={{ pointerEvents: 'all', outline: 'none' }}
                onMouseDown={(e) => handleMouseDown(e, index)}
              />
            ))}
        </>
      );
    }
  );

  /** 注入连接线 */
  const edgeTypes = { customEdge: CustomEdge };

  /** 自定义连接线动画组件 */
  const CustomEditableEdge = () => {
    return (
      <ReactFlow
        fitView
        defaultNodes={defaultNodes}
        defaultEdges={defaultEdges}
        edgeTypes={edgeTypes}
        proOptions={{ hideAttribution: true }}>
        {/* 背景 */}
        <Background variant={BackgroundVariant.Dots} gap={12} size={1} />
      </ReactFlow>
    );
  };

  /** Provider */
  const CustomEditableEdgeProvider = () => {
    return (
      <ReactFlowProvider>
        <CustomEditableEdge />
      </ReactFlowProvider>
    );
  };

  export default CustomEditableEdgeProvider;

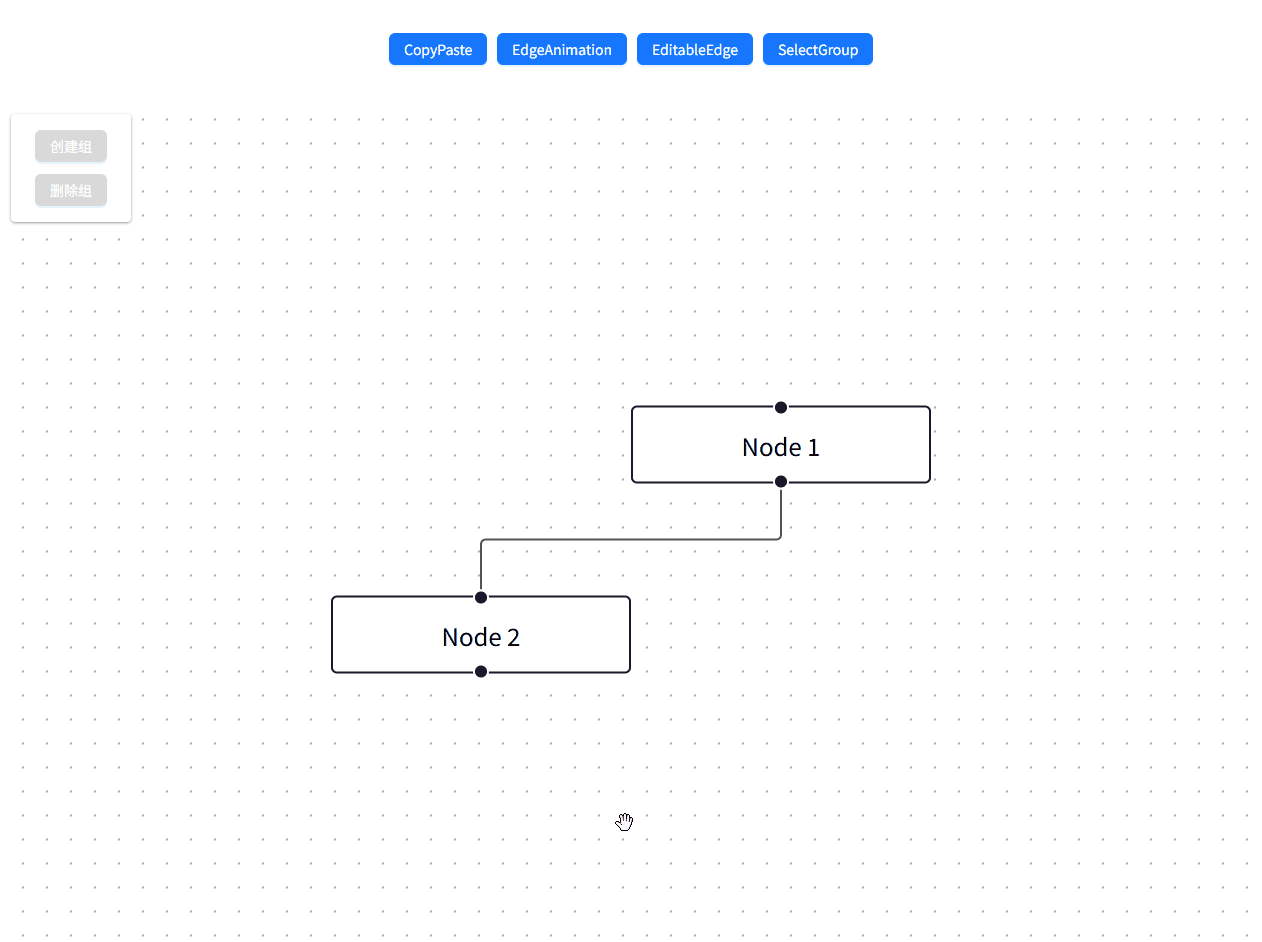

选择分组示例

• 参考官网示例：Selection Grouping

• 实现思路：计算所有选中的节点的最小坐标位置和最大坐标位置，然后根据这两个坐标位置创建一个新的节点作为分组节点。官方提供了 getNodesBounds 方法，传入节点数组，返回节点组的 x、y、width、height 信息。核心代码如下：

  import {
    Background,
    BackgroundVariant,
    Node,
    OnSelectionChangeParams,
    Panel,
    ReactFlow,
    ReactFlowProvider,
    useReactFlow,
  } from '@xyflow/react';
  import { useCallback, useState } from 'react';
  import { v4 as uuidv4 } from 'uuid';

  import '@xyflow/react/dist/style.css'; // 引入样式
  import './index.css';

  /** 节点组padding (不想要可设置为0) */
  const GROUP_PADDING = 10;

  /** 默认节点 */
  const defaultNodes = [
    {
      id: '1',
      data: { label: 'Node 1' },
      position: { x: 250, y: 5 },
    },
    {
      id: '2',
      data: { label: 'Node 2' },
      position: { x: 100, y: 100 },
    },
  ];

  /** 默认连接线 */
  const defaultEdges = [
    {
      id: '1-2',
      source: '1',
      target: '2',
      type: 'smoothstep',
    },
  ];

  /** 自定义选择分组组件 */
  const CustomSelectGroup = () => {
    const { setNodes, getNodes, getNodesBounds } = useReactFlow();

    const [selected, setSelected] = useState<OnSelectionChangeParams>({
      nodes: [],
      edges: [],
    });

    /** 节点/连接线选择事件 */
    const handleSelectionChange = useCallback(
      (nodeEdgeObj: OnSelectionChangeParams) => {
        setSelected?.(nodeEdgeObj);
      },
      []
    );

    /** 创建组 */
    const handleCreateGroup = () => {
      const selectedNodes = selected?.nodes || [];

      // 生成组 ID
      const groupId = uuidv4();
      // 获取所有选中节点的 ID
      const selectedNodeIds = selectedNodes.map((node) => node.id);
      // 获取所有节点的最大/最小坐标
      const { x, y, width, height } = getNodesBounds(selectedNodes);

      // 创建组节点
      const groupNode = {
        id: groupId,
        type: 'group',
        data: {},
        position: { x: x - GROUP_PADDING, y: y - GROUP_PADDING },
        width: width + GROUP_PADDING * 2,
        height: height + GROUP_PADDING * 2,
        style: {
          backgroundColor: 'rgba(207, 182, 255, 0.4)',
          borderColor: '#9e86ed',
        },
      } satisfies Node;

      // 获取所有节点
      const nodes = getNodes();

      // 更新节点
      const updatedNodes: Node[] = nodes.map((node) => {
        if (selectedNodeIds.includes(node.id)) {
          const { position } = node;
          return {
            ...node,
            parentId: groupId,
            extent: 'parent',
            position: {
              x: position.x - Math.abs(x) + GROUP_PADDING,
              y: position.y - Math.abs(y) + GROUP_PADDING,
            },
            selected: false,
          };
        }
        return node;
      });

      setNodes([groupNode, ...updatedNodes]); // groupNode 必须放在前面, 否则会导致 extent: 'parent' 不生效
    };

    /** 移除组 */
    const handleRemoveGroup = () => {
      const selectedNodes = selected?.nodes || [];

      const groupId = selectedNodes[0].id;
      // 获取所有节点
      const allNodes = getNodes();
      // 获取最新的组节点, 防止组节点坐标被修改
      const realNode = allNodes.filter((node) => node.id === groupId);

      setNodes((nodes) =>
        nodes
          .map((node) => {
            const { parentId, position } = node;
            if (parentId === groupId) {
              const x = position.x + realNode[0].position.x;
              const y = position.y + realNode[0].position.y;
              return {
                ...node,
                parentId: undefined,
                extent: undefined,
                position: { x, y },
              };
            }
            return node;
          })
          .filter((node) => node.id !== groupId)
      );
    };

    return (
      <ReactFlow
        fitView
        defaultNodes={defaultNodes}
        defaultEdges={defaultEdges}
        onSelectionChange={handleSelectionChange}
        proOptions={{ hideAttribution: true }}>
        {/* 背景 */}
        <Background variant={BackgroundVariant.Dots} gap={12} size={1} />

        {/* 面板 */}
        <Panel position="top-left">
          <div className="custom-select-group">
            <div
              className={`btn ${
                selected?.nodes.length < 1 ||
                selected.nodes.some(
                  (node) => node.type === 'group' || node.parentId
                )
                  ? 'btn-disabled'
                  : ''
              }`}
              onClick={handleCreateGroup}>
              创建组
            </div>
            <div
              className={`btn ${
                selected?.nodes.length !== 1 ||
                selected?.nodes[0].type !== 'group'
                  ? 'btn-disabled'
                  : ''
              }`}
              onClick={handleRemoveGroup}>
              删除组
            </div>
          </div>
        </Panel>
      </ReactFlow>
    );
  };

  /** Provider */
  const CustomSelectGroupProvider = () => {
    return (
      <ReactFlowProvider>
        <CustomSelectGroup />
      </ReactFlowProvider>
    );
  };

  export default CustomSelectGroupProvider;



集成演示地址

---
